Overview:

Armored Multi Loose Tube (MLT) fiber optic cables "Stranded Loose Tube" are rugged outdoor cables designed for direct burial, duct, or harsh environments, offering high crush resistance, rodent protection, and water-blocking performance. They are widely used in campus networks where durability and reliability are critical.

Outdoor Multi Loose Tube MLT Fiber Cables are designed for harsh environments, offering high fiber counts up to 288 fibers, water-blocking protection, rodent resistance, and UV-resistant jackets, making them ideal for direct burial, aerial, and duct installations. They are widely used in telecom backbones, campus networks, and industrial applications due to their durability and scalability.

Application:

Armored Stranded Corrugated Steel Cable bundles assemblies consist of a between 12~288 core, that enables installation of in building wiring applications. The fiber assemblies are bundled with outer sheath is a color coating fiber and filled with waterproof compounds. A layer of outer Jacket extruded outside the loose tube with Jacket Material is polyethylene (PE), low smoke halogen-free flame-retardant polyolefin (LSZH).

• Smaller diameter

• Excellent environmental properties

• High strength Multi Loose Tube member

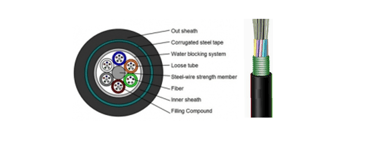

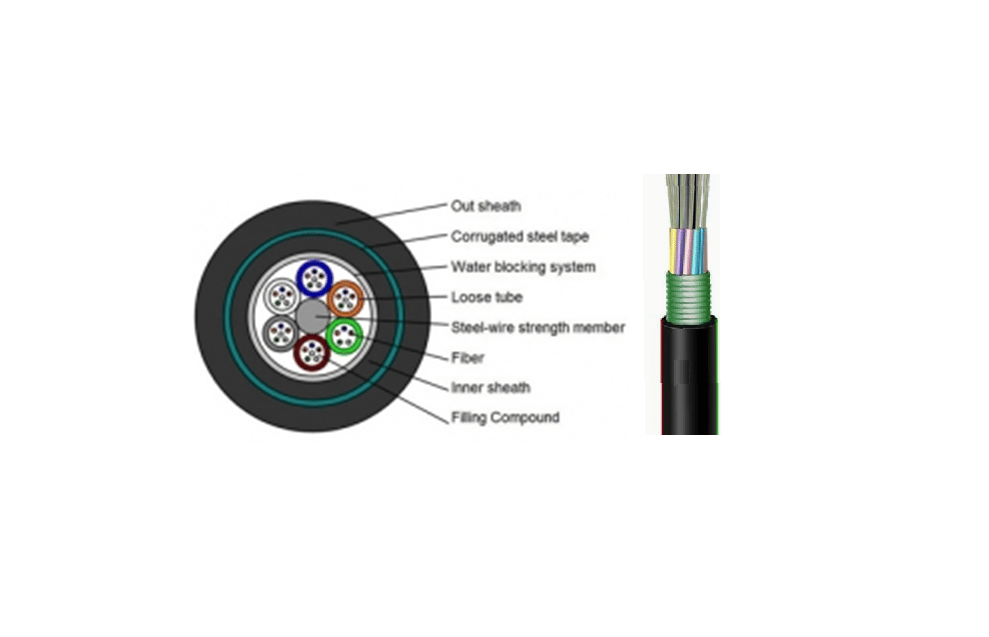

• Corrugated steel tape surrounds the multi loose tube for crush resistance

• Perfect cable structure with high fiber density

• Network design flexibility

• The outer sheath is a PE or LSZH jacket

• Flame retardant characteristics meet the requirements of relevant standards

• Fiber bundle for 12~288 core

• Singlemode or Multimode

• Fiber type G.G652D, G.657A1, G.657A2

• Fiber type is Multi Loose Tube 12~288 core

• Armored Stranded Corrugated Steel Single Jacket or Double Jacket

• Low friction surface for maximum installation lengths

• Excellent environmental properties

• Material outer sheath is PE or LSZH jacket

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• Tensile Performance: IEC 60794-1-21 Method E1

• Bend: IEC 60794-1-21 Method E11

• Impact: IEC 60794-1-21 Method E4

• Crush: IEC 60794-1-21 Method E3

Operation Performance:

Optional Features:
