Overview:

Fiber Optical Distribution Frames (ODFs) are the central hub of fiber optic networks, providing organized cable management, splicing, and protection. They are essential in telecom facilities, data centers, and campus networks for simplifying maintenance and ensuring reliable connectivity.

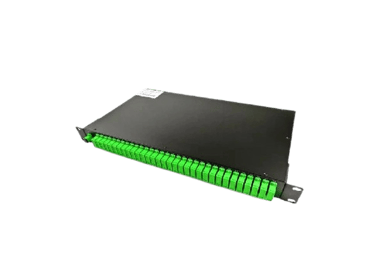

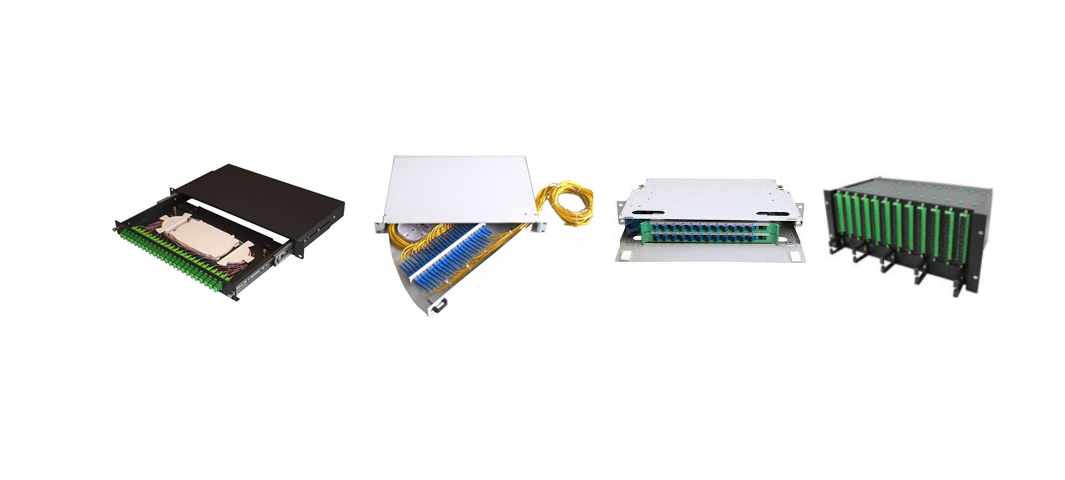

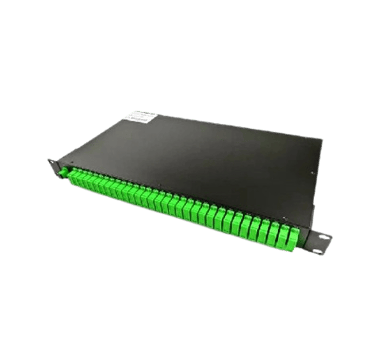

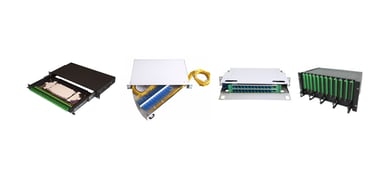

Optical Distribution Frame “ODF” also named Fiber Patch Panel is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fiber optic connections from damage. The basic functions of ODFs are almost the same. However, they come into different shapes and specifications such as sliding rack mount, swing rack mounted, modular rack mount and high-density rack mount. It is used as a termination point for the feeder cable to connect with drop cable in fiber network system.

Application:

Optical Distribution Frame is an indoor or outdoor ODF in the FTTX network to connect the cable interconnections between communication facilities through fiber port. This fiber ODF is made of high-quality powder coated cold rolled steel and designed for use in residential and business applications for the termination of the fiber optic cables. The ODF is the most popular and comprehensive fiber optic distribution frame which can reduce the cost and increase the reliability and flexibility of fiber optic network during both deployment and maintenance.

• Available in Fixed, Sliding or Swing rack mount

• Rack mount 19” 1U for 24 ports and 2U for 48 ports and up to 144 ports in 4U

• Made of powder coated cold rolled steel material

• Integrated with splice cassette and cable management rods

• Compact structure and perfect fiber management

• Suitable for the fusion splice or mechanical splice

• Fiber connector types of FC, SC, ST and LC etc.

• High reliability and reasonable inner space design

• Customer connectors are available upon request

• Singlemode or Multimode

• Simplex or Duplex adaptors

• Fiber Mode: Singlemode or Multimode

• Connector type: SC, FC, ST, LC etc.

• Polish Interface Type: PC, UPC, APC

• Adapter Capacity: 24 or 48 ports, simplex or duplex adaptors

• Splice trays: 2x12 cores or 2x24 cores Splice trays

• Installation Models: Fixed, Sliding or Swing 19” rack mount

• Material: High-quality powder cold rolled steel material

Mechanical Performance Test compliance:

• Optical Testing: IEC 61300 series

• Generic cabling systems: ISO/IEC 11801

• Temperature Performance[°C]: -30 to +60
