Overview:

Open Rack Cabinet used to support and organize the communication equipment, cross-connection and/or termination hardware for fiber optic cabling, station cabling, riser cabling, and building entrance cabling as maybe required by design. Open Frame series has been designed specifically, for high density patching applications associated with Data Centers. The quality of open rack is critical to reliable optical transmission performance. The product shall be produced with high quality control system is applied the process from product design to packaging.

Their inherent design prioritizes scalability, allowing for seamless expansion and integration of new hardware without significant structural modifications. The open architecture significantly enhances airflow, effectively mitigating heat buildup and ensuring the longevity and performance of high-density equipment. Furthermore, the unrestricted access simplifies cable management, facilitating efficient routing, tracing, and troubleshooting, which are crucial in complex IT environments. These attributes make them a preferred choice across data centers, telecommunication facilities, and enterprise IT departments where flexibility and efficient equipment hosting are paramount.

Application:

Optimized size cabinets are suitable for large Networks, Servers and Data Centers. We offer cabinets with enough room to access equipment through the front door and the rear door. Some cabinets in this line come equipped with removable single and duale section side panels with locks. In our product portfolio, you will also find racks that can be equipped with single or double door and glass or vented which makes them a very aesthetic solution for networks.

• 19-Inch standard Open rack design

• Excellent environmental properties

• 2 or 4 posts, with and without castors

• Network design flexibility

• Thickness Mounting Profile 2.0 mm, others 1.5 mm

• Can be bolted directly to floor

• Maximum access for cable management

• Various optional accessories according to requirements

• Easily assemble and disassemble

• Customized size is available

• Color Black (RAL9004), Gray (RAL7035), etc.

• 100% component test to guarantee the quality

• Open rack cabinet 19” Stranded

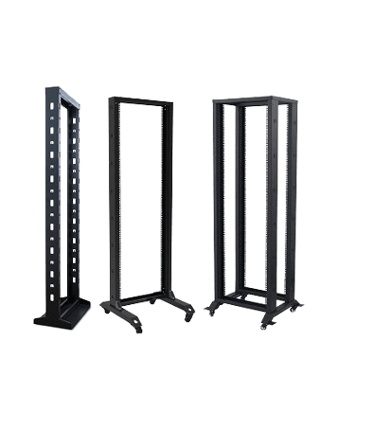

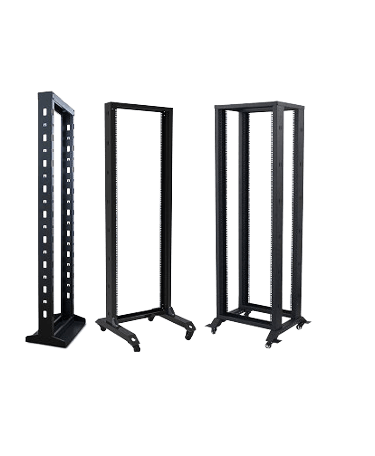

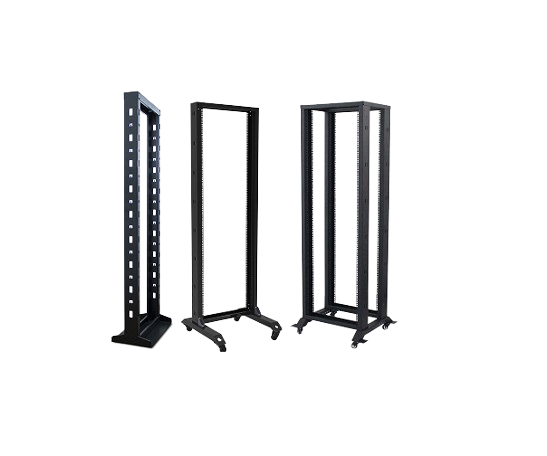

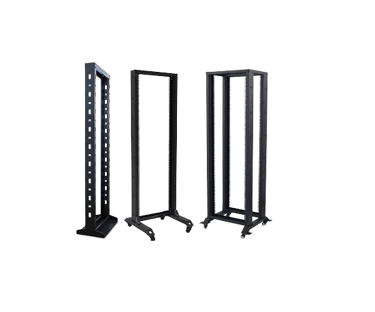

• Available rack with 2 or 4 posts, with and without castors

• Available Width: 600

• Available Depth: 600 mm, 800 mm, 900 mm

• Available Height 15U, 18U, 24U, 27U, 42U etc.

• Excellent environmental properties

• Material SPCC Cold rolled steel with powder coat finishing

• IP Rating IP20

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• ANSI/EIA RS-310-D

• ISO/IEC 22237-1:2021

• IEC60297-2

• EN 50173 and EN 50288-4-1

• DIN41494 PART1, DIN41494 PART7

• ISO, UL, CE, RoHS, ETSI

Operation Performance:

Optional Features:
