Overview:

Indoor-Outdoor fiber optic cables are designed for versatile use in both indoor and outdoor environments, offering high durability, UV resistance, and compliance with international standards for data, voice, and video transmission. They are ideal for LAN, campus, and building-to-building connections where cables must withstand harsh conditions while meeting flame safety requirements.

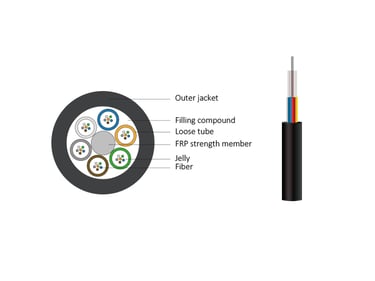

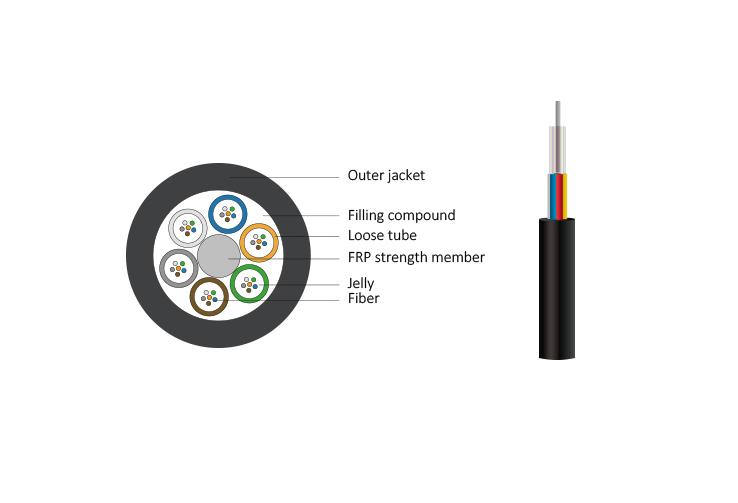

Indoor-Outdoor Single Loose Tube Cable is commonly known as Universal Central Loose tube Fiber Optic Cable. It is mostly Installed in walls, between floors, in plenum air handling ducts and under data center floors. It can also be made into a 2 to 24 cores structure with a cross-section non-metallic strength members and black LSZH, UV resistant jacket with ripcord types shaped.

Application:

Indoor-Outdoor Single Loose Tube Cable bundles assemblies consist of a between 2~24 core, that enables installation of in building wiring applications. The fiber assemblies are bundled with outer sheath is a non-metallic strength member and black LSZH, UV resistant jacket with ripcord layer that is of low friction. This fiber cable is applied in Duct, cable trays and FTTx Access installations. Used in access network indoor in customer premises network.

• Smaller diameter

• Excellent environmental properties

• High strength Single Loose Tube member

• Perfect cable structure with high fiber density

• Network design flexibility

• The outer sheath is a PE or LSZH jacket

• Flame retardant characteristics meet the requirements of relevant standards

• Fiber bundle for 2~24 core

• Singlemode or Multimode

• Fiber type G.G652D, G.657A1, G.657A2

• Fiber type is Uni-loose tube 2~24 core

• Low friction surface for maximum installation lengths

• Excellent environmental properties

• Material outer sheath is PE or LSZH jacket

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• Tensile Performance: IEC 60794-1-21 Method E1

• Bend: IEC 60794-1-21 Method E11

• Impact: IEC 60794-1-21 Method E4

• Crush: IEC 60794-1-21 Method E3

Operation Performance:

Optional Features:
