Overview:

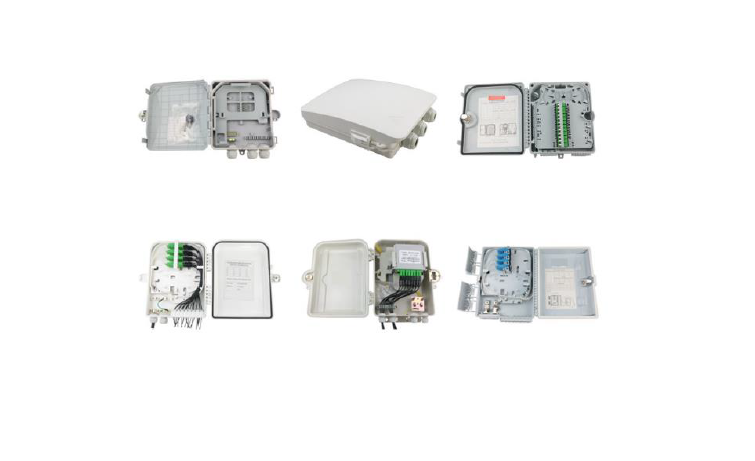

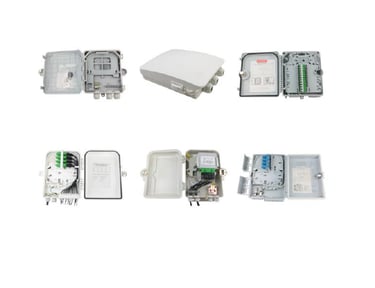

Fiber optic terminal boxes are protective enclosures designed to house, organize, and secure fiber optic connections. They play a crucial role in ensuring reliable performance, easy management, and safe handling of fiber optic systems.

Fiber Access Terminal Boxes are indispensable components in modern communication infrastructure, serving as critical indoor and outdoor demarcation points for almost all fiber optic networks. These high-quality fiber optic access terminals are specifically designed for deployment within office environments and building floors, facilitating the direct provision of reliable optical or data access to end-users. Given the diverse range of installation requirements encountered in various network architectures, these boxes are engineered to accommodate a wide array of industry-standard fiber optic connectors, including SC, ST, LC, FC, and others, ensuring broad compatibility and flexibility. Their versatility and robust design make them essential for establishing efficient and adaptable last-mile fiber optic connectivity.

Application:

Fiber Access Terminal Box is designed for the FTTx project and provide mechanical protection for fiber management system that include the functions of patching, splicing and passive optic components integration indoor or outdoor environments. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

• Smaller diameter

• Excellent environmental properties

• Perfect cable structure with high fiber density

• Network design flexibility

• The outer sheath is a PE layer

• Blown into the microduct from 8mm inner diameter

• Fiber bundle for Uni-loose tube 2 to 12 cores

• Fiber bundle for Multi loose tube (Stranded) 12 to 288 cores

• Fiber bundle diameter: 5.8 – 11.2 mm

• Singlemode or Multimode

• Fiber type G.G652D, G.657A1, G.657A2

• Fiber type is Uni-loose tube 2 to 12 cores

• Fiber type is Multi loose tube (Stranded) 12 to 288 cores

• Low friction surface for maximum installation lengths

• Excellent environmental properties

• Material outer sheath is PE layer

• Maximum Air Pressure (Blowing) 15bar

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• Tensile Performance: IEC 60794-1-21 Method E1

• Bend: IEC 60794-1-21 Method E11

• Impact: IEC 60794-1-21 Method E4

• Crush: IEC 60794-1-21 Method E3

Operation Performance:

Optional Features:
