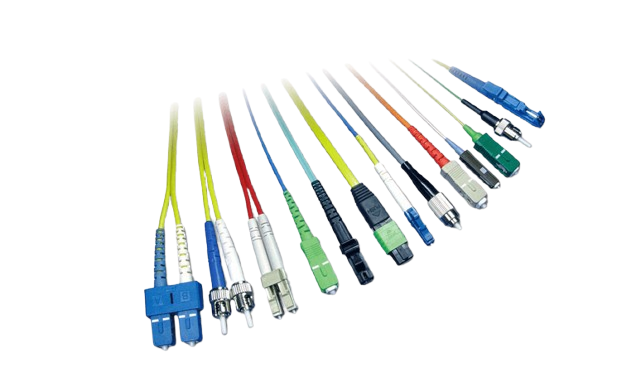

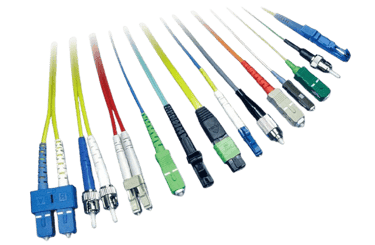

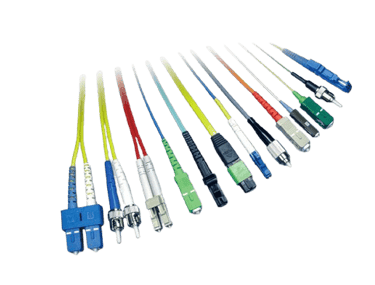

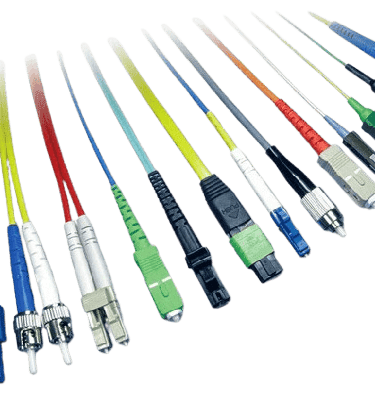

Fiber Optic Patch Cords

Fiber Patch Cords are used to connect one device to another for signal transmission. The fiber patch cord is a connector that is installed at both ends for the device, connectorized cable assemblies are cord-type fiber optical cables terminated with connectors at both ends. The type of cable fiber and connector and the length of the patch cords can be freely specified, according to the structure of the connector, it can be divided into FC, SC, ST, LC, MPO and the like.

Overview:

Download Datasheet

Fiber optic patch cords, also known as fiber optic patch cables or fiber jumpers, are indispensable components in modern optical networks. They act as the critical link for interconnecting devices like optical switches, servers, and distribution frames. Understanding the various technical specifications of these seemingly simple cables is crucial for ensuring optimal network performance, low signal loss, and future scalability. They come in various types, each tailored for specific applications and requirements.

Fiber optic patch cables are short, flexible fiber optic cords used to connect network devices like switches, servers, and patch panels. They are critical in modern data centers, telecom systems, and industrial automation because they enable high-speed, low-loss data transmission.

Application:

Fiber optic patch cords are essential for connecting network devices in high-speed communication systems, with applications ranging from data centers and telecom networks to industrial automation and broadcasting. Their role is to provide reliable, low-loss connections that support modern bandwidth demands, it can be divided into different types such as FC, SC, ST, LC, MPO, etc.

Available in Fixed, Sliding or Swing rack mount
Rack mount 19” 1U for 24 ports and 2U for 48 ports and up to 144 ports in 4U
Made of powder coated cold rolled steel material
Integrated with splice cassette and cable management rods
Compact structure and perfect fiber management
Suitable for the fusion splice or mechanical splice
Fiber connector types of FC, SC, ST and LC etc.
High reliability and reasonable inner space design
Customer connectors are available upon request
Singlemode or Multimode
Simplex or Duplex adaptors

Fiber Mode: Singlemode or Multimode
Connector type: SC, FC, ST, LC etc.
Polish Interface Type: PC, UPC, APC
Adapter Capacity: 24 or 48 ports, simplex or duplex adaptors
Splice trays: 2x12 cores or 2x24 cores Splice trays
Installation Models: Fixed, Sliding or Swing 19” rack mount
Material: High-quality powder cold rolled steel material

Mechanical Performance Test compliance:

Optical Testing: IEC 61300 series
Generic cabling systems: ISO/IEC 11801
Temperature Performance[°C]: -30 to +60

Operation Performance:

Optional Features:
