Overview:

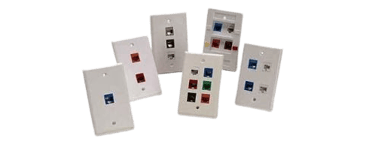

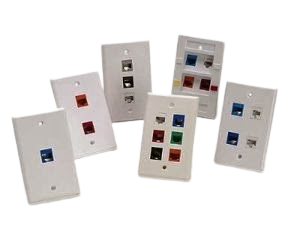

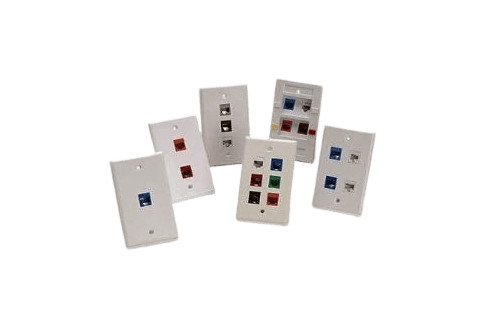

Network faceplate is a kind of cabling accessories, which applies to the cabling sub-system in network, and it is suitable for installing multi-type modules. Its main function is to fix the module and protect the cable at the data interface, which acts as a shield. In all network system, faceplate is not a key-feature accessory, but it is one of surface accessories, it plays a role of good-looking and connection in the overall cabling effect.

A LAN faceplate serves as a critical component in structured cabling systems, providing a professional and user-friendly interface for Ethernet connectivity within various environments. These wall-mounted panels are meticulously designed to house keystone jacks or other modular connectors, ensuring a secure and organized termination point for network cables. By consolidating multiple data ports into a single, aesthetically pleasing unit, faceplates effectively manage cable clutter and protect delicate connections from wear and tear. Their ubiquitous presence across offices, residential premises, and data centers underscores their role in facilitating reliable network access and maintaining the integrity of the physical layer.

Application:

Network faceplate refers applied to the work area cabling subsystem, one of network products suitable for many types of modules installed. Network faceplate for cabling system, not the main product components affect performance, but in the entire wiring system, but it is one of the few exposed in the wall surface of the product, its performance and appearance directly affects the overall wiring Effect.

• Smaller diameter

• Excellent environmental properties

• Perfect cable structure with 4 pairs of wires

• Network design flexibility

• The outer sheath is a PE, PVC and LSZH layer

• Conductor Diameter: from 0.57±0.02 to 0.64±0.02mm Copper

• Outer Cable Diameter: 6.2mm ± 0.2 mm to 8.7mm ± 0.2 mm

• Tested to from 250 MHz to 2000 MHz with guaranteed performance according to Category

• 100% component test to guarantee the quality

• Ethernet Cat6, Cat6A, Cat7, Cat7A or Cat8 Stranded

• Available in UTP, FTP and STP

• Conductor 23AWG and 24AWG Stranded

• Excellent environmental properties

• Material outer sheath is PE, PVC and LSZH layer

• Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• ANSI/TIA/ EIA-568-C.2 or EIA-568.2-D

• ISO/IEC 11801-1 and ISO/IEC 61156-5

• IEC 62821-1 and IEC 60754-1

• EN 50173 and EN 50288-4-1

• ANSI/TIA-1096-A (FCC Part 68)

• EN50173-1:2011

• UL, ETL, CE, RoHS

Operation Performance:

Optional Features:
