Overview:

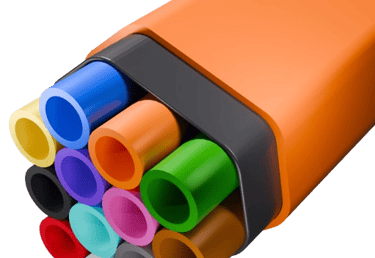

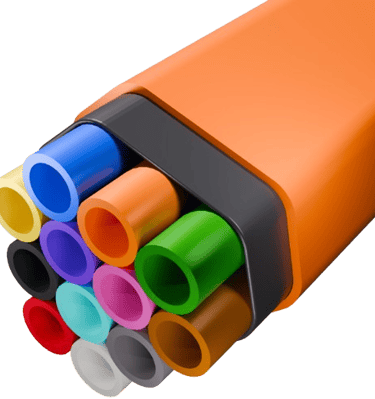

Direct Bury Metal Free “DBMF” Microduct Assemblies consist of tubes with a smooth or ribbed inner surface that enables an air blown installation of micro cables. The micro ducts are sheathed with two layers without moisture barrier. It provides excellent protection from the physical environment withstanding significant amount of pressure by pulling, and it is easy to branch off for network expansion.

Duct is designed for high crush resistance from external pressure. The thin inner tube wall can make it easy to bend or fix inside of cabinet/closure. The extra layer (total 2 layers of the outer sheath) is added to protect the thin wall of inner tube from external ground pressure. Flexibility of tube allows bending or fixing inside of cabinet/closure. It is strong against lightning, electrical surge.

Application:

The tight protected duct assemblies consist of a number of microducts with an inner low friction, antistatic surface that enables installation of air blown unit fibers cables. The duct assemblies are bundled with HDPE sheath depending on configuration. The design makes the ducts suitable for installation directly into the ground.

• Enhanced Silicone Liner for low friction

• Various configurations with different size between 5/3.5mm and 12/10mm

• Wide range of number of inner tubes from 1 way to 24+1 way

• Ribbed & Smooth Type

• Rip cords

• Insulated Locatable copper wire

• Material HDPE Inner tube and Outer sheath

• Low friction inner surface for maximum installation lengths

• Excellent environmental properties

• silicone coated inner tube

• Material HDPE Inner tube and Outer sheath

• Maximum Air Pressure (Blowing) 15bar

• Temperature Performance[°C]: -40 to +60

Mechanical Performance Test compliance:

• Tensile Performance: IEC 60794-1-21 Method E1

• Bend: IEC 60794-1-21 Method E11

• Kink: IEC 60794-1-21 Method E1

• Impact: IEC 60794-1-21 Method E4

• Crush: IEC 60794-1-21 Method E3

• Inner Clearance: IEC 60794-5-20 Ann. E

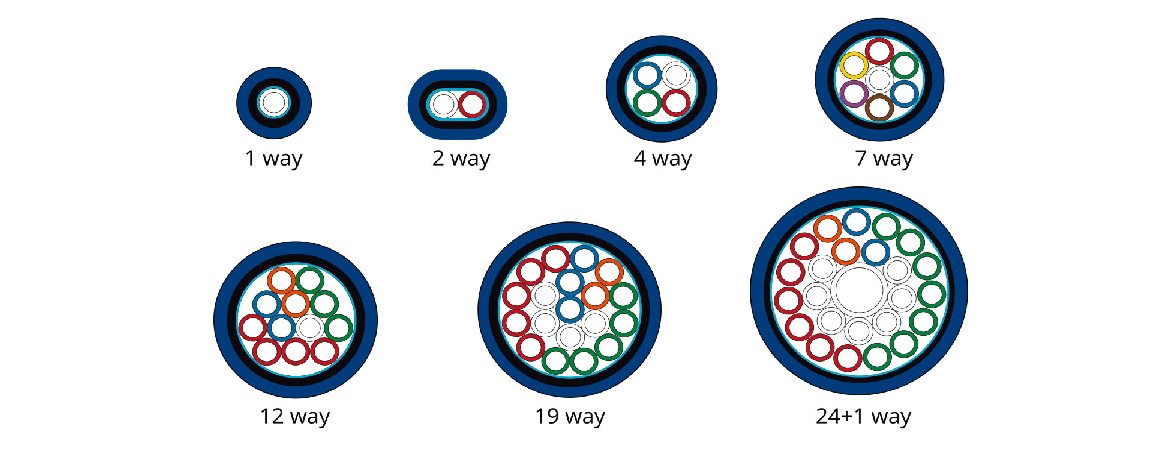

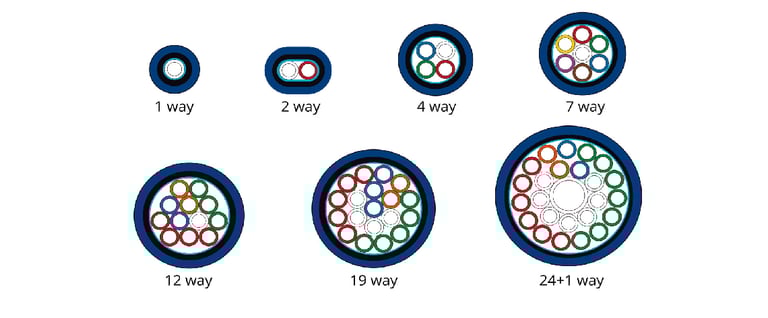

Microduct Configuration:

Operation Performance:

Optional Features:
