Overview:

Category 7 ethernet cables, also called Cat.7 ethernet cables, is a standardized twisted pair cable for Ethernet and other network physical layers, the Cat7 cable standard specifies performance of up to 600MHz. Some environments are prone to greater-than-normal amounts of interference, so there are cables designed to provide even more protection against interference. The protection is called shielding and foiled.

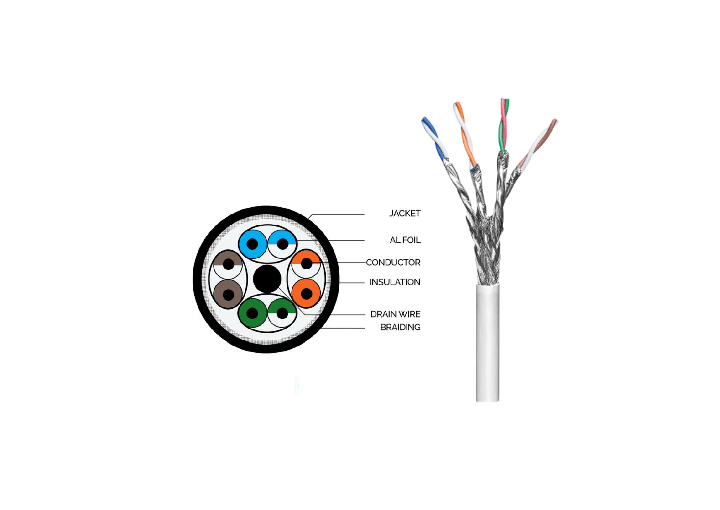

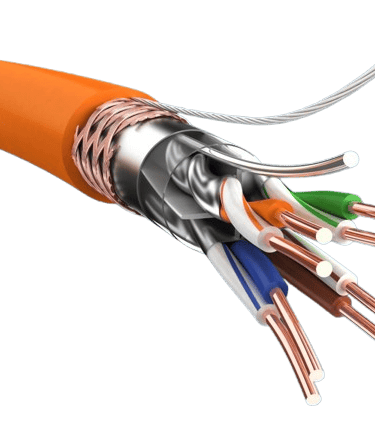

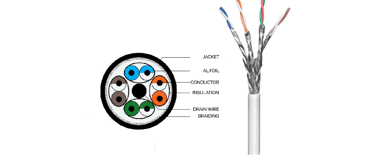

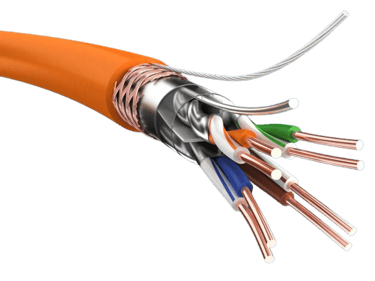

Category 7 (Cat 7) LAN cables are a high-performance class of Ethernet cabling specifically engineered to meet the rigorous demands of modern data centers and enterprise networks. These robust cables are designed to reliably transmit 10 Gigabit Ethernet (10 GbE) speeds over standard distances of up to 100 meters, ensuring consistent high-speed data flow. A defining characteristic of Cat 7 is its advanced shielding, which includes individual shielding for each twisted pair within the cable, along with an overall cable shield, effectively minimizing alien crosstalk and electromagnetic interference to maintain signal integrity. This superior construction supports an impressive bandwidth of 600 MHz, providing ample capacity for intensive network traffic.

Application:

Businesses use Ethernet cabling in office buildings, data centers and users, primary considerations determine ethernet cable to use for your business. Ethernet cables can be classified into different types according to different specifications, unshielded, Foiled and shielded cables in terms of shielding types, and solid copper and stranded copper cable in terms of the copper conductor in pairs.

• Smaller diameter

• Excellent environmental properties

• Perfect cable structure with 4 pairs of wires

• Network design flexibility

• The outer sheath is a PE, PVC and LSZH layer

• Conductor Diameter: 0.58±0.02 Solid Bare Copper

• Outer Cable Diameter: 7.4mm ± 0.2 mm

• Guaranteed performance to 600MHz

• Cable supports 10Base-T, 100Base-T, 1GBase-T, 10GBase-T

• Full compliance to latest standards for Category 7 and Class EA

• CAT7 ethernet cable cat7 4 pairs copper twist wire

• Available in UTP, FTP and STP

• Conductor 23AWG Stranded

• Excellent environmental properties

• Material outer sheath is PE, PVC and LSZH layer

• Meets requirements of IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• ANSI/TIA/EIA-568.2-D

• ISO/IEC 11801 Class F

• IEC 60092-360 and IEC 60332-1

• EN 50173 and EN 50288-4-1

• ANSI/TIA-1096-A (FCC Part 68)

• EN50173-1:2011

• UL, ETL, CE, RoHS

Operation Performance:

Optional Features:
