Overview:

Category 6A ethernet cables, also called Cat.6A ethernet cables, is a standardized twisted pair cable for Ethernet and other network physical layers, the Cat6A cable standard specifies performance of up to 500MHz. Some environments are prone to greater-than-normal amounts of interference, so there are cables designed to provide even more protection against interference. The protection is called shielding and foiled.

Category 6A (Cat 6A) LAN cables represent a high-performance twisted-pair solution, specifically engineered to support 10 Gigabit Ethernet (10 GbE) connectivity over distances up to 100 meters, distinguishing themselves from Cat 6 through superior shielding and significantly reduced interference. This advanced capability positions Cat 6A as the established industry standard for future-proofing enterprise and high-demand networks. The sophisticated cable configuration is critical in maintaining exceptional signal integrity and ensuring consistent, reliable performance, particularly within densely cabled environments where crosstalk and external noise are prevalent concerns.

Application:

Businesses use Ethernet cabling in office buildings, data centers and users, primary considerations determine ethernet cable to use for your business. Ethernet cables can be classified into different types according to different specifications, unshielded, Foiled and shielded cables in terms of shielding types, and solid copper and stranded copper cable in terms of the copper conductor in pairs.

• Smaller diameter

• Excellent environmental properties

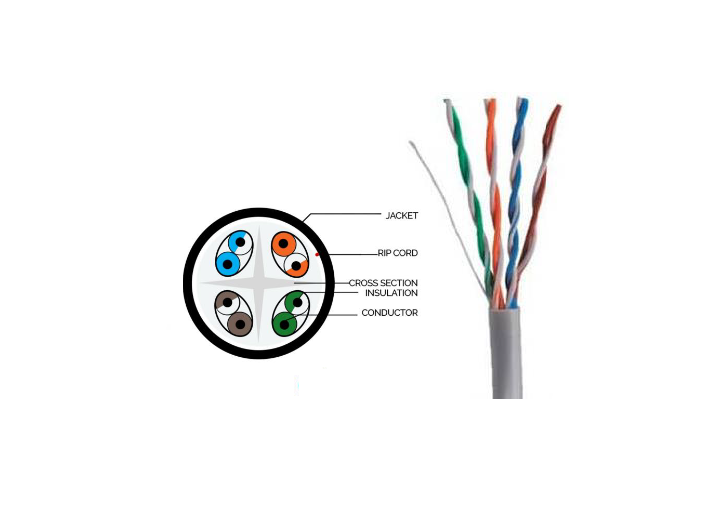

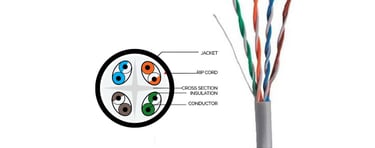

• Perfect cable structure with 4 pairs of wires

• Network design flexibility

• The outer sheath is a PE, PVC and LSZH layer

• Conductor Diameter: 0.58±0.02 Solid Bare Copper

• Outer Cable Diameter: 7.3mm ± 0.2 mm

• Guaranteed performance to 500MHz

• Full compliance to latest standards for Category 6A and Class EA

• CAT6A ethernet cable UTP cat6A 4 pairs copper twist wire

• Available in UTP, FTP and STP

• Conductor 23AWG Stranded

• Excellent environmental properties

• Material outer sheath is PE, PVC and LSZH layer

• Meets requirements of IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• ANSI/TIA/EIA-568.2-D

• ISO/IEC 11801

• IEC 61156-5

• EN 50173 and EN 50288

• ANSI/TIA-1096-A (FCC Part 68)

• EN50173-1:2011

• UL, ETL, CE, RoHS

Operation Performance:

Optional Features:
