Overview:

Category 6 (Cat6) cables are standardized twisted pair cables are high-performance twisted pair cables designed for Ethernet networks, supporting up to 1 Gbps over 100 meters. They operate at frequencies up to 250 MHz, offering reduced crosstalk and noise compared to Cat5e, making them ideal for modern home and office networks.

Category 6 (Cat6) Unshielded Twisted Pair (UTP) Ethernet cables serve as a standardized solution for network physical layers, engineered to deliver performance specifications up to 250 MHz. While standard UTP designs are suitable for numerous applications, environments characterized by elevated levels of electromagnetic interference often necessitate additional protective measures. To address this, specialized Cat6 cables incorporate shielding and foiling techniques, which significantly enhance their resistance to external noise and crosstalk. These advanced protective mechanisms are vital for ensuring stable data transmission and preserving network integrity in electromagnetically challenging operational contexts.

Application:

Businesses use Ethernet cabling in office buildings, data centers and users, primary considerations determine ethernet cable to use for your business. Ethernet cables can be classified into different types according to different specifications, unshielded, Foiled and shielded cables in terms of shielding types, and solid copper and stranded copper cable in terms of the copper conductor in pairs.

• Smaller diameter

• Excellent environmental properties

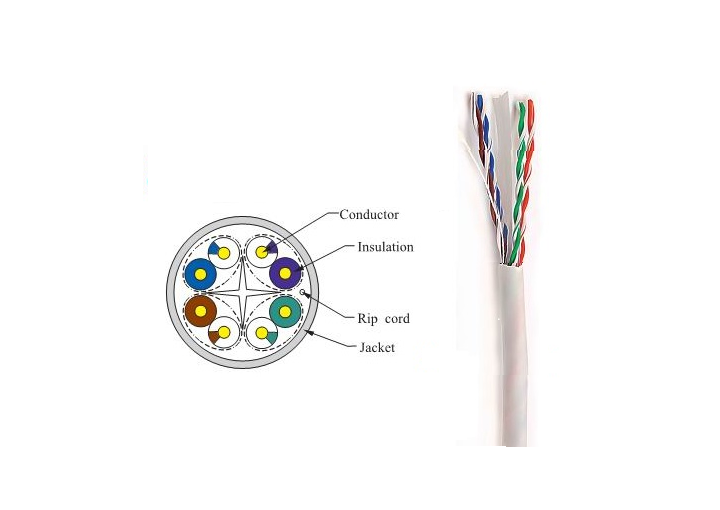

• Perfect cable structure with 4 pairs of wires

• Network design flexibility

• The outer sheath is a PE, PVC and LSZH layer

• Conductor Diameter: 0.57±0.02 Solid Bare Copper

• Outer Cable Diameter: 6.2mm ± 0.2 mm

• Tested to 350 MHz and with guaranteed performance to 250 MHz

• 100% component test to guarantee the quality

• CAT6 ethernet cable UTP cat6 4 pairs copper twist wire

• Available in UTP, FTP and STP

• Conductor 23AWG and 24AWG Stranded

• Excellent environmental properties

• Material outer sheath is PE, PVC and LSZH layer

• Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• ANSI/TIA/EIA 568-C.2

• ISO/IEC 11801 2nd Edition Class E channel

• ANSI/TIA-1096-A (FCC Part 68)

• EN50173-1:2011

• UL, ETL, CE, RoHS

Operation Performance:

Optional Features:
